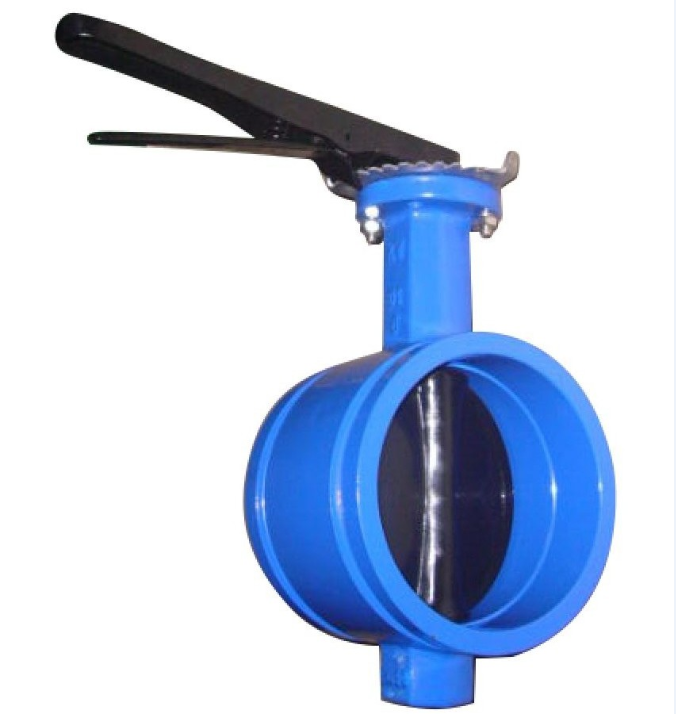

1.Features:
1. 90° movement for full open/close position.
2. Excellent control characteristics.Tight shut-off even after innumerable operations.
3. Installation cost considerably reduced because of very low weight and compact design.
4. Longer life and reliable service with minimum component wear.
5. Renewable seats. No supplementary gasket required with the adjacent pipework.
6. Body & Stem totally protected from service fluid.
2.Technical Data:
(1) Nominal Diameter DN(mm)40(1-1/2’’)~600(24’’)
(2) Nominal Pressure PN(MPa): 1.0~2.5
(3) Testing Pressure PN(MPa): Shell: 1.5~3.75 Sealing: 1.1~2.75
(4) Working Temperature:-30~+450°C
3.Meterial could be:
|
Item
|
Part Name
|
Materials
|
|
1
|
Body
|
Stainless Steel: ASTM A351 CF8, CF8M, CF3, CF3M;
Carbon Steel: ASTM A216 WCB
|
|
2
|
Stem
|
Zinc Plated Steel;
Stainless Steel: ASTM A276 Type 316, Type 410, Type 420, ASTM A582 Type 416;
|
|
3
|
Taper Pin
|
Stainless Steel: ASTM A276 Type 304, Type 316, EN 1.4501;
|
|
4
|
Seat
|
PTFE, Viton,stainless steel
|
|
5
|
Disc
|
Stainless Steel: ASTM A351 CF8, CF8M, CF3, CF3M, EN 1.4408, 1.4469; 1.4501;
AL-Bronze: ASTM B148 C95400;
|
Packaging & Shipping
1.Payment: T/T or L/C
2.Shipment:Within 20days after your po.
Our Services
1. Best price with high quality,
2.18 mounths Guarantee Period.
3. The standard could be ANSI,DIN,JIS,SABS,GB,ISO,GOST,BS,UNI and so on.
